Digital Yacht iSeaSense is a new range of complete marine instrumentation packs based on NMEA 2000 and wireless connectivity – allowing for maximum flexibility and connectivity. Choose from using phones, iPads, and tablets for boat data displays as well as 3rd party industry-standard instruments and multi-function displays.
Top quality and highly accurate sensors are used for boat depth, speed, compass, and GPS data. Data can be shared with other devices on the NMEA 2000 network too.
iSeaSense is easy to specify. Available as two main starter packs, everything is included for easy installation and ordering. No app is needed either as the iSeaSense wireless server creates powerful graphical and numeric display pages that can be viewed via a browser on any device.
iSeaSense Pack 1 is a comprehensive boat depth, speed, and temperature pack. A spatial sensor is also included for detecting pitch and roll and there’s a sophisticated algorithm for calibrating boat speed information based on heel.
A full NMEA 2000 backbone cabling pack is included and the wireless interface for connectivity. There is a spare cable and connection point for additional NMEA 2000 devices such as a multi-function display or Digital Yacht’s range of instruments.
iSeaSense features an easy-to-use web interface. No apps are required. Simply open the browser on a connected device, navigate to iSeaSense.local, and the optimized touchscreen display is ready.
The web interface works on iOS, Android, PC, Linux, and MAC – any standard web browser as well as e-ink displays like Kindle and e-book. It supports up to 3 connected devices with super fast 5Hz updates.
The data can also be used by 100’s popular navigation apps & software such as Navionics, TZ iBoat, OpenCPN, SailGrib, etc.
Operation
You can access the iSeaSense dashboard through its own web interface, just open your web browser, enter the iSeaSense’s IP address or iSeaSense.local and you will access the attractive dash to display all your instrument's data. So no complicated programming software or app is required.
By default, iSeaSense has a series of pre-defined pages that display digital databoxes and analog “instruments” of the instrument and navigation data available on the NMEA 2000 network.
With iSeaSense you’re in control of the data you see. The pages are fully editable, so any databox can be configured for the information you want and you can easily add and remove databox to build your perfect display. The configuration can also be saved and shared – ideal for standard configurations for production boats and OEMs.
iSeaSense Pack Features:

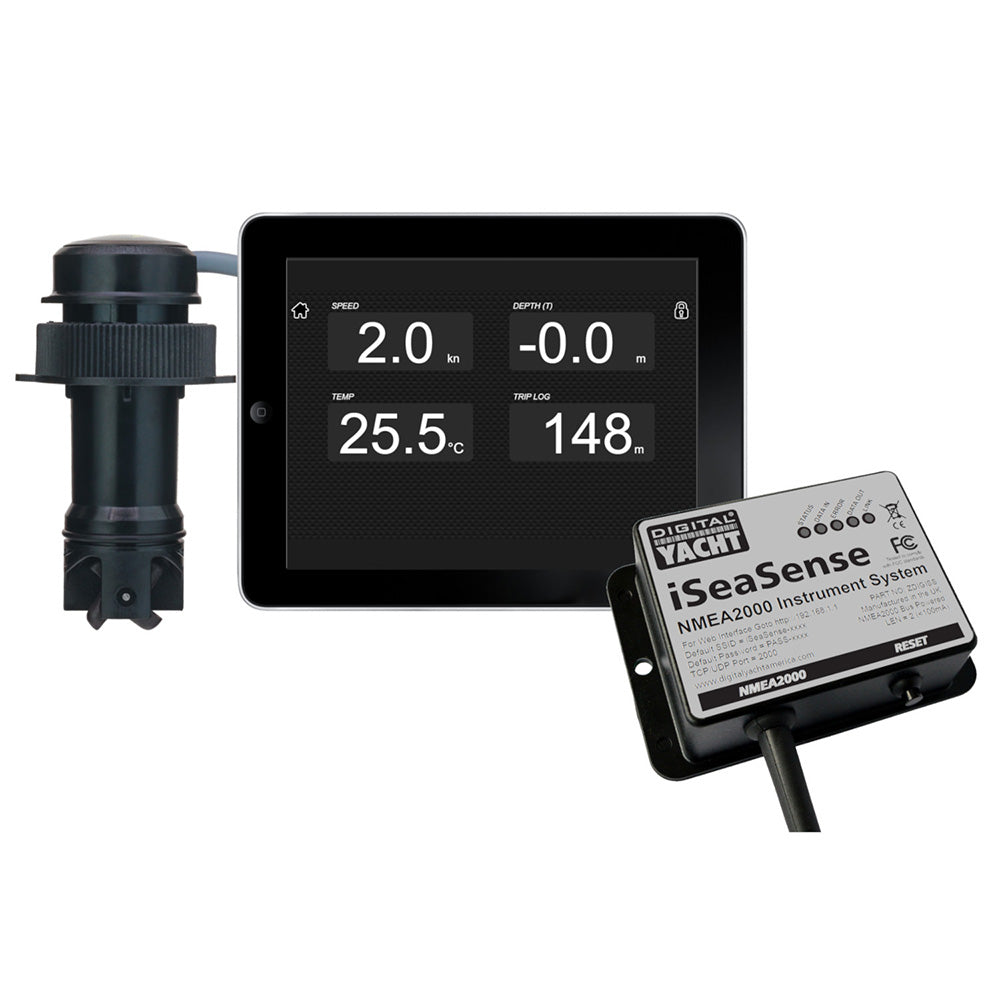

Pack includes iSeaSense wireless server, NMEA 2000 cabling, and advanced boat depth, speed, and temperature transducer with pitch and heel sensor
iSeaSense server creates beautiful graphic display pages of data with fast 5Hz updates viewable on any smartphone, tablet, or iPad
Advanced calibration routing is available for the transducer with corrections for the boat heel and transducer location
Includes extra NMEA 2000 T piece for system expansion allowing easy addition of sensors or displays
Interface Features:
NMEA 2000 interface and wireless gateway for iSeaSense system. Integrated instrument display page server.
Configurable display pages for depth, speed, temp, time, GPS, wind, navigation, and compass
Network diagnostics, settings, and calibration capability
Data logging
Self-powered from NMEA 2000 backbone
Integrated wifi antenna typically footprints boats up to 20m
Supports additional TCP/IP and UDP data connections for 3rd party apps on up to 7 connected devices (outputs GPS, AIS, depth, wind, and speed information from NMEA 2000 bus)
Transducer Features:
Transducer for depth, boat speed, water temperature, and boat heel/pitch with fast, super accurate 5Hz speed updates from 0.3 to 45 knot
Data Update Rate: Depth: 1X/second, Speed: 5X/second, Heel/Trim: 10X/second
235KHz depth operation to minimize interference with 50/200KHz fish finders and sounders
Max depth 100m
Supports up to 22-degree hull deadrise
Supplied with 6m NMEA 2000 cable and self-powered from iSeaSense NMEA 2000 backbone
Standard 2” thru hull size/diameter
Includes Bluetooth interface for advanced calibration and set-up features if required
Stainless steel and bronze skin fittings available as an option
