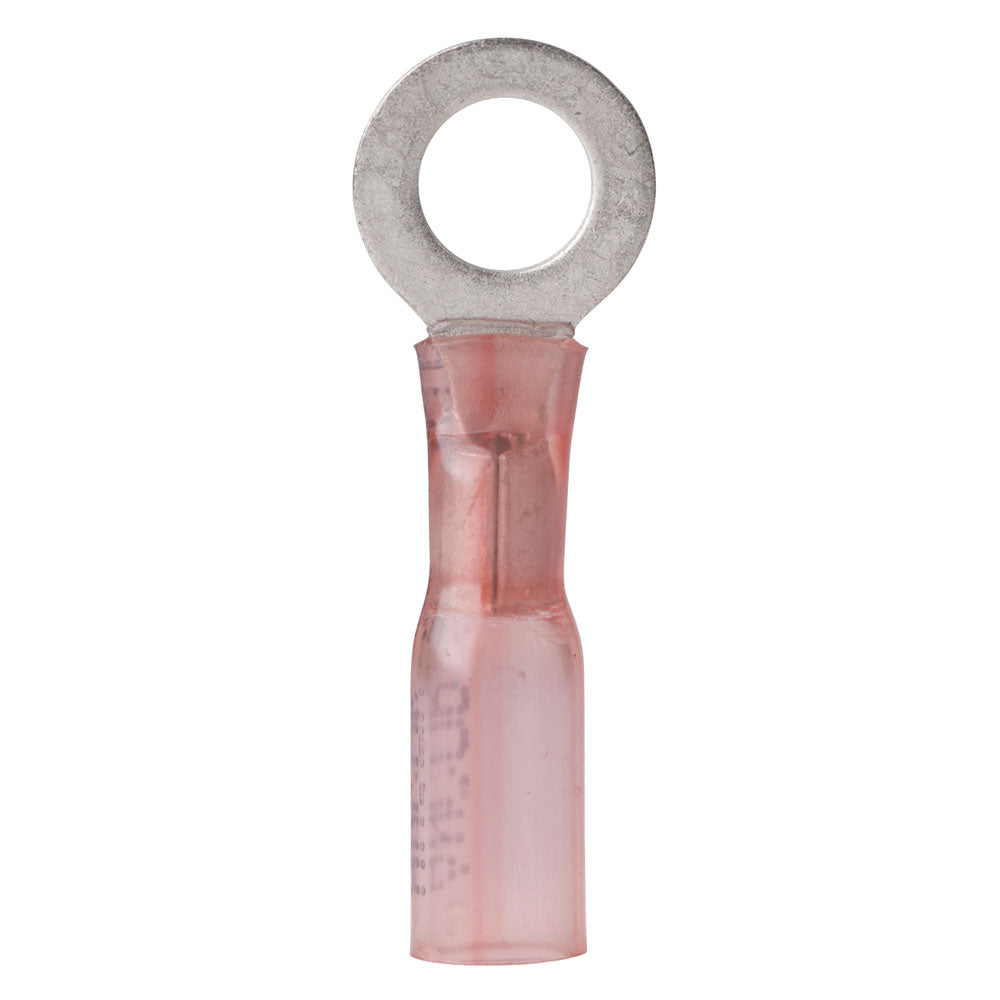

Ancor 22-18 Gauge - 5/16" Heat Shrink Ring Terminal - 25-Pack [310525]

Save $ 5.24 USD

Price:
Sale price$ 17.99 USD Regular price$ 23.23 USD
Stock:
In stock (6 units), ready to be shipped

Description

22-18 Gauge - 5/16" Heat Shrink Ring Terminal - 25-Pack

Wire Range:22-18
Screw Size: 5/16"
Quantity: 25

Product Features:

  • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC
  • Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief
  • Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage
  • UL Listed and CSA Recognized
  • Highest shrink ratio - shrinks to 1/3 original size
  • Shrinks at 257° F/125° C
  • Operating temperature range 40° C to 110° C
  • ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
  • Shrinks to form a water tight seal and the ultimate vibration and strain relief
  • Tinned for corrosion resistance
  • Pure copper for maximum current flow
  • Brazed seam for maximum strength

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Gauge: 22-18 AWG
  • Type: Ring Terminals
  • Post Size: 5/16"
  • Package Qty: 25
  • Heat Shrink: Yes
  • Box Dimensions: 1"H x 4"W x 4"L WT: 0.2 lbs
  • UPC: 091887311037

Quick Guide (pdf)
