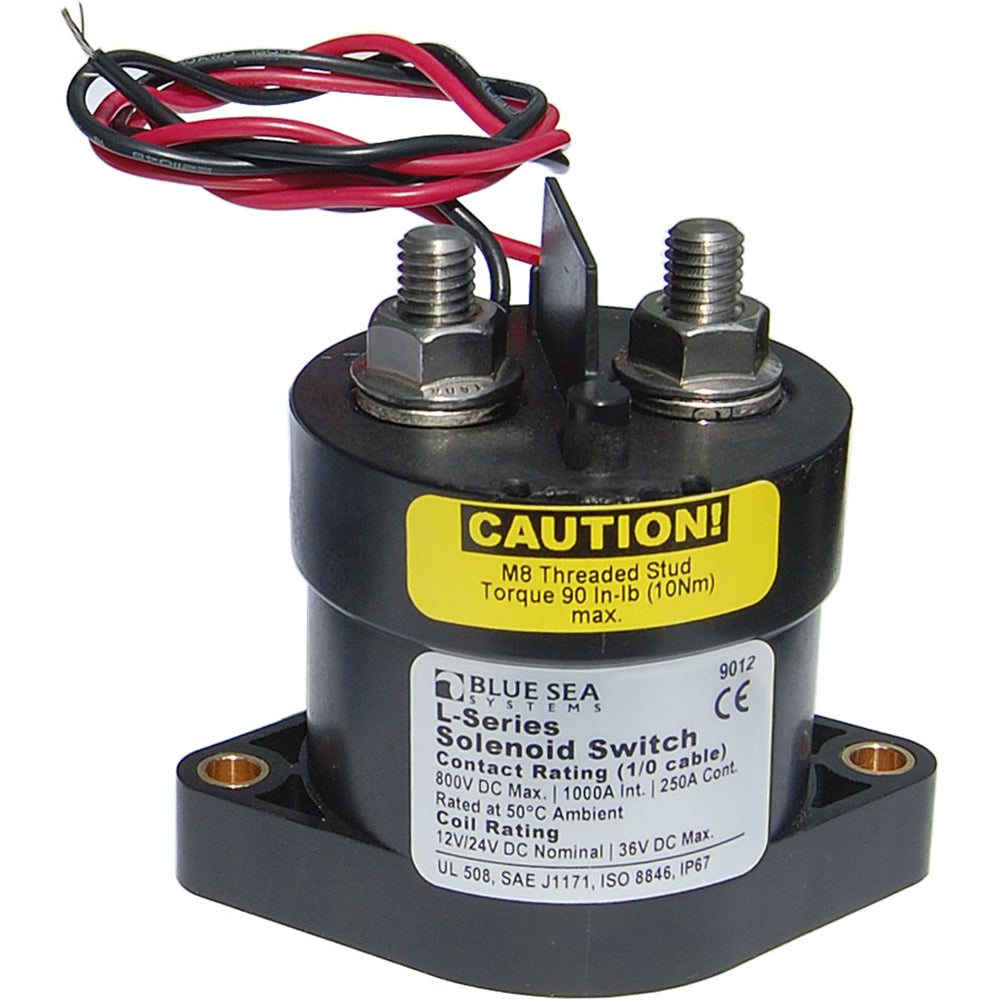

Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A [9012]

Save $ 83.10 USD

Price:
Sale price$ 191.99 USD Regular price$ 275.09 USD
Stock:
In stock (6 units), ready to be shipped

Description

L Solenoid Switch - 12-24VDC - 250A

Features:

  • Hermetically sealed contacts / vaporproof
  • Ignition protected - safe for installation aboard gasoline powered boats
  • Activated by an ON-OFF switch mounted anywhere
  • Integrated coil control minimizes heating and amperage draw
  • 450 Amp Class
  • Designed for 12 or 24 Volt systems
  • Ignition protected -- safe for installation aboard gasoline-powered boats
  • Activated by a low amperage ON-OFF switch mounted anywhere

Specifications:

  • Control Circuit Connection: 20 AWG Tinned Wire
  • Nominal Voltage: 12V DC / 24V DC
  • Coil Function: Normally Open
  • Mounting: #10
  • Operating Amperage Current: 3.6A when changing state
  • Amperage Operating Current: 0.13A @ 12 V / 0.07A @ 24 V
  • Terminal Stud Torque: 90 in-lb (10.17 Nm)
  • Continuous Rating: 250A Using 1/0 Wire Size / 300A Using 2/0 Wire Size / 400A Using 4/0 Wire Size / 450A Using 2 x (2/0) Wire Size
  • Intermittent Rating: 275A (5 min) Using 1/0 Wire Size / 400A (5 min) Using 2/0 Wire Size / 500A (5 min) Using 4/0 Wire Size / 600A (5 min) Using 2 x (2/0) Wire Size
  • Cranking Rating 30 sec: 1,000A / 1000A DC
  • Contact Form: SPST-NO
  • Input Voltage: 9-36V DC
  • Inrush Rating: 0.25 sec (10 repeats): 2000A
  • Switching Cycles: 1,000,000
  • Terminal Stud: Serrated Flange Nut
  • Terminal Stud Length: 0.66" (16.76mm)
  • Terminal Stud Size: 5/16" (M8)
  • Weight: 1.00lb (0.45 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Continuous Amperage: 450a
  • Box Dimensions: 3"H x 4"W x 7"L WT: 1 lbs
  • UPC: 632085090128

Owner's Manual (pdf)
